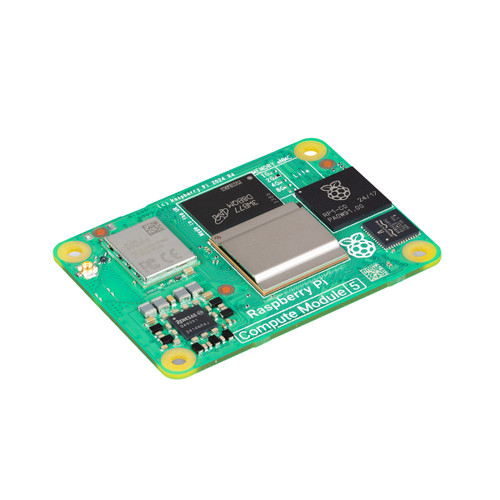

Raspberry Pi Compute Module 5, Wireless, 2GB RAM, 16GB eMMC - CM5102016
| Brand | Raspberry Pi |
| SKU: | 5474-SC1588 |
| UPC: | 5056561805474 |
Raspberry Pi Compute Module 5, Wireless, 2GB RAM, 16GB eMMC - CM5102016 - SC1588
Raspberry Pi Compute Module 5 is a system on module that delivers the power of Raspberry Pi 5 in a form factor ideal for embedded applications. Featuring a quad-core Arm Cortex-A76 processor, dual 4Kp60 HDMI output, Gigabit Ethernet, optional fully-certified wireless module providing Wi-Fi® and Bluetooth connectivity, and a variety of RAM and eMMC flash options, Compute Module 5 enables you to leverage Raspberry Pi 5’s powerful hardware and optimized software stack in your own custom systems and form factors. In comparison with its predecessor, Compute Module 5 features additional I/O interfaces, allowing even more flexibility and providing a greater breadth of options for product and application design.
To assist product designers, the Raspberry Pi Development Kit for Compute Module 5 offers an ideal environment for prototyping embedded solutions. This comprehensive kit includes a Compute Module 5 and Compute Module 5 IO Board, together with all the essential accessories to kick-start your product design.
Specifications
- Form Factor: 55 mm × 40 mm × 4.7 mm module, 4 × M2.5 mounting holes
- Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4GHz
- Memory: 2GB RAM, 16GB eMMC
- Connectivity:
Certified radio module containing:
• 2.4 GHz / 5.0 GHz IEEE 802.11 b/g/n/ac wireless
• Bluetooth 5.0, BLE
• On-board electronic switch to select between PCB trace or external antenna
Gigabit Ethernet PHY supporting IEEE 1588
1 × PCIe x1 root complex, Gen 2 (5Gbps)
1 × USB 2.0 port (high speed)
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
Up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options:
• Up to 5 × UART
• Up to 5 × I2C
• Up to 5 × SPI
• 1 × SDIO interface
• 1 × DPI (parallel RGB display)
• 1 × I2S
• Up to 4 × PWM channels
• Up to 3 × GPCLK outputs - Video:
2× HDMI 2.0 ports(supports up to 4Kp60 on both ports simultaneously)
2× 4-lane MIPI ports supporting both DSI (display port) and CSI-2 (camera port) - Multimedia: 4Kp60 HEVC decoder, OpenGL ES 3.1 graphics, Vulkan 1.2, 1 × SDIO 2.0 (CM5 Lite)
- Input Power: Single +5V PSU input supports USB PD for up to 5A @ 5V
- Operating temperature: -20°C to +85°C
- MTBF Ground Benign: 143 000 hours (168 000 hours CM5 Lite)
- Production lifetime: Raspberry Pi Compute Module 5 will remain in production until at least January 2036
- Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
