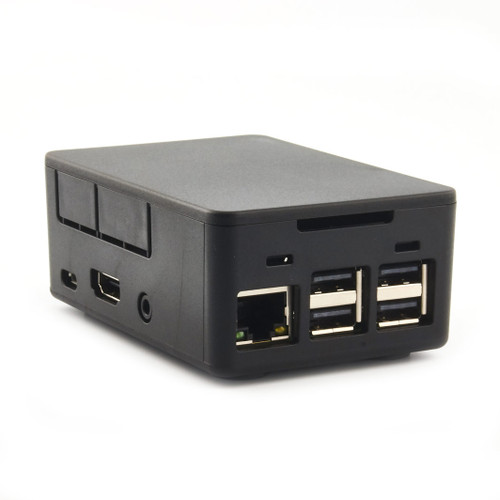

HighPi Raspberry Pi 2/3 Case - Black
Designed and made in Canada from high quality ABS material. Tall enough to host a wide range of add-on board and slim enough to look cool. Just a fraction of an inch taller than most of the "standard" cases and still a perfect fit for boards like HiFiBerry DAC+ (see specs below).
The HighPi case sets a new standard for ease of use and versatility. Installing or removing the Raspberry Pi PI3B board is astonishingly quick, simple, and secure; all without tools or assembly. One snap action locks the Pi board into the case; the second secures the lid, rattle free. Remove the Pi board and the lid with one-finger-releases for each. Genius!
Whether you’re running a plain PI3B board or modding it to the max, the HighPi PI3B case has your Pi covered. Generous internal room allows HATs, break-out boards, or heat sinks. Vents on three sides double as fly-through cable ports for the GPIO and whatever else you need to connect to. A two-section break-out allows you to choose how much of the A/V side of the case to open up for connectors on attached boards.
This case perfectly accommodates the HiFiBerry DAC+ Light/Standard/Pro/RTC HATS and the DAC2 HD HAT. HiFiBerry boards such as the DAC+ ADC that include headphone jacks will not fit.
The HighPi PI3B case can be wall mounted horizontally with two screws for easy removal, or mounted in any orientation including upside-down with four screws from inside the case. When wall mounted horizontally, the A/V and audio cables hang downward from the Pi, improving visual tidiness and reducing the need for support of heavy cables.
Also available in Clear.
HighPi PI3B Full Feature List
- Durable two part ABS plastic case
- Industry-leading ease of use, easy and tool free
- Large internal volume for HATs, break-out boards, or heat sinks
- Vents on three sides double as fly-through cable ports
- Two-section breakout on A/V side for break-out board I/O
- Mounting option 1: two M3.5/M3/#6 screws slide into wall mounts
for easy removal, horizontal orientation with A/V side down, 40mm spacing
- Mounting option 2: four M3.5/M3/#6 screws through feet from inside for
secure mounting in any orientation, 68.3 x 38.8mm spacing
- Self-adhesive feet included, quantity 4
- Matte finish hides fingerprints
- Available in black or red. Order two and mix lids!
- External dimensions: 96 x 66 x 41mm
- Internal volume for breakout boards:
- Length – 91.0mm
- Width – 60.0mm
- Height – 28.8mm (from top of PI2B PCB to underside of lid)
1 Review Hide Reviews Show Reviews
Why is this so hard to find!? This case is affordable, the parts just click into place with no movement, and it works out of the box with room for a PoE Hat or whatever add-on you have. I searched for something this tall and everything I could find was either obscure in it's wording as to whether it fit a Pi + add-on module or it was priced so high I was happy to go without it. Perfect, thank you!
