7 Inch Digital LCD Touch Display Screen With Driver Board Kit For Raspberry Pi - 1024 x 600
NOTE: A power supply is not included. Please see the description below in 'Features'.
|Active Area(mm)||154.08(W) × 85.92(H) mm|
|Dot Pitch(mm)||0.0642(W) × 0.1790(H) mm|
|Pixel Arrangement||R.G.B. Vertical Stripe|
|Display Mode||Normally White|
|contrast ratio||500:1 Typ.|
|Physical Size(mm)||164.9(W) ×100.0(H) ×5.7(D) mm|
|RoHS Compliance||RoHS Compliance|
Working voltage: DC 5V power need more than 1A and within 2A, if you use it in cars, need to add a 5V regulator
Rated power: 6-7W
Signal Input: 1 channel HDMI
System format: PAL / NTSC
HDMI input: HDMI 1.2 version
Support 5V DC voltage input, you can use USB, or mobile power supply, but can not reverse the positive and negative, to avoid damage to the circuit board.
Resolution: 1024 * 600 physical resolution, support for the resolution range can be adjusted between 640 × 480 --- 1600 × 1200!
Plug and Play: Supported
OSD Language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
Control: Multi-function OSD operation or potentiometer to adjust the brightness and color
Features: mature program, clear display
Support image flip up and down, the image can 4:3 / 16:9 display format conversion
Scope: Used in video intercom, onboard computer, instrumentation, industrial control, medical equipment, ** equipment, portable display equipment and other electronics field.

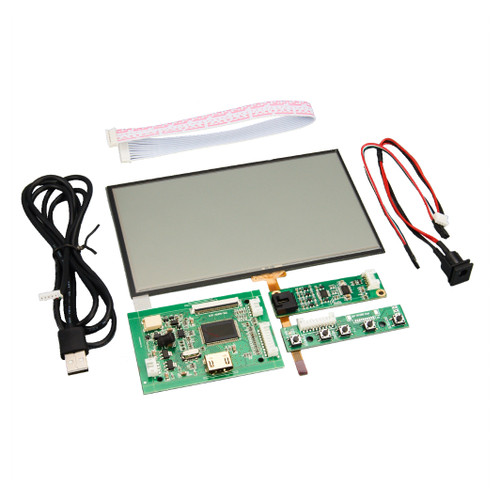

1 x 7 inch LCD display
1 x 7 inch touch screen overlay
1 x LCD driver board
1 x Control button board
1 x Touch screen driver board
1 x DC power jack for driver board, 5.5mm barrel size
1 x Ribbon cable for control button board
1 x USB cable for touch driver board
1 x 4-wire cable for touch driver board
