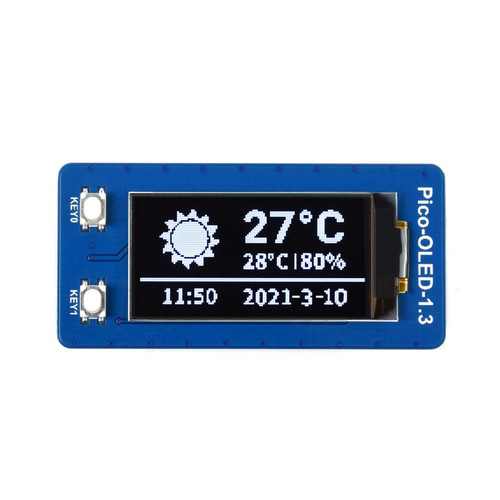

1.3inch OLED Display Module for Raspberry Pi Pico, 64x128, SPI/I2C
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 1798 |
Raspberry Pi Pico is NOT included
The display is compatible with SPI and I2C, configured for SPI by default
Waveshare 19376 - 1.3inch OLED Display Module For Raspberry Pi Pico, 64×128 Pixels, SPI/I2C Interface
Features
- Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
- 2x user buttons for easy interacting
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| OPERATING VOLTAGE | 3.3V |
| COMMUNICATION INTERFACE | 4-wire SPI, I2C |
| DISPLAY PANEL | OLED |
| DRIVER | SH1107 |
| RESOLUTION | 64×128 pixels |
| DISPLAY SIZE | 14.70 × 29.42mm |
| PIXEL SIZE | 0.15 × 0.15mm |
| DIMENSIONS | 52.00 × 25.00mm |
Raspberry Pi Pico Header Compatibility
- Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
- 2x User Buttons For Easy Interacting
Pinout Definition
Outline Dimensions
