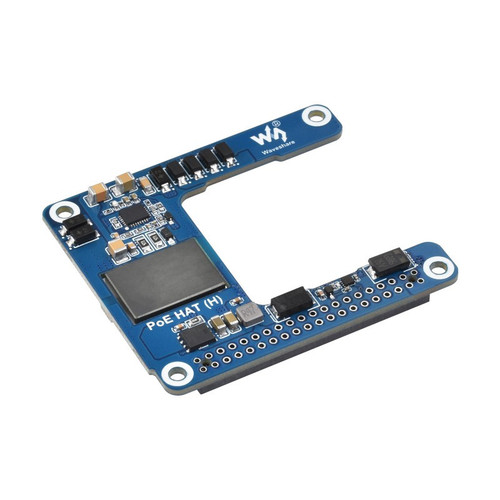

Power Over Ethernet HAT (H) For Raspberry Pi 5 / CM 5, 5V 5A Output, Supports 802.3af/at PoE (Isolated)
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 3085 |
Waveshare 30901 - Power Over Ethernet HAT (H) For Raspberry Pi 5 & CM5, 5V 5A Output, 802.3af/At, Isolated, Compatible with Raspberry Pi 5 Official Case - PoE HAT (H)
Features
The PoE HAT (H) is an IEEE 802.3af/at-compliant PoE (Power Over Ethernet) HAT for Raspberry Pi 5 / CM 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Standard Raspberry Pi 40PIN GPIO header
- PoE capability，IEEE 802.3af/at-compliant
- Onboard original IC solution for more stable PoE power performance
- Adopts isolated switched-mode power supply (SMPS)
- Compact and easy to assemble
- Compatible with Raspberry Pi 5 official Active Cooler
Specifications
|
PoE power input |
38V ~ 57V DC in |
|---|---|
|
Power output |
GPIO header: 5V 5A (MAX) |
|
Dimensions |
56.5 × 65.0mm |
|
Network standard |
IEEE 802.3af/at PoE |

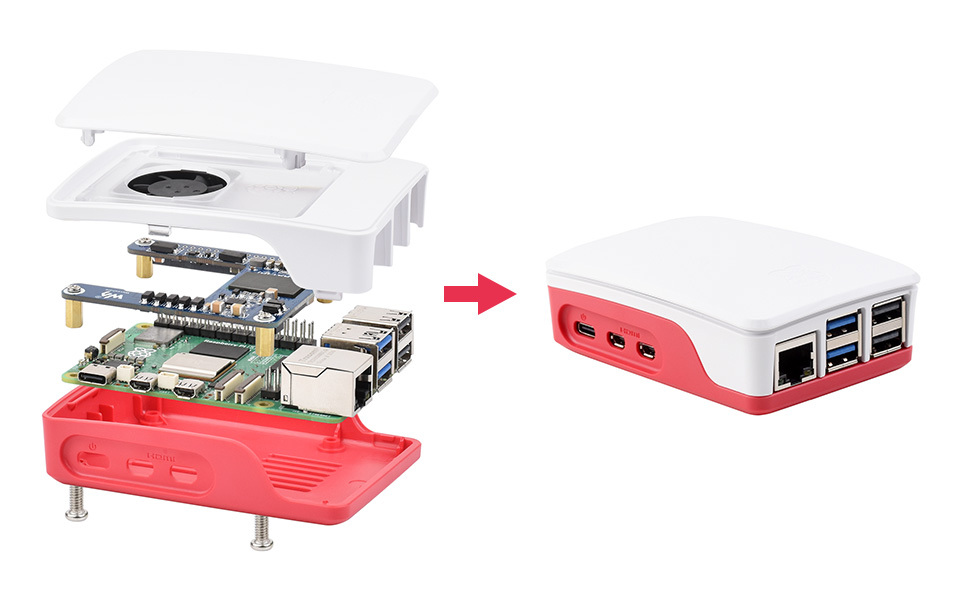

Installation With Raspberry Pi 5 Official Case
Includes
- PoE HAT (H) x1
- 2*2 header x1
- 2*20 header x1
- Standoffs pack x1
Weight: 0.037 kg

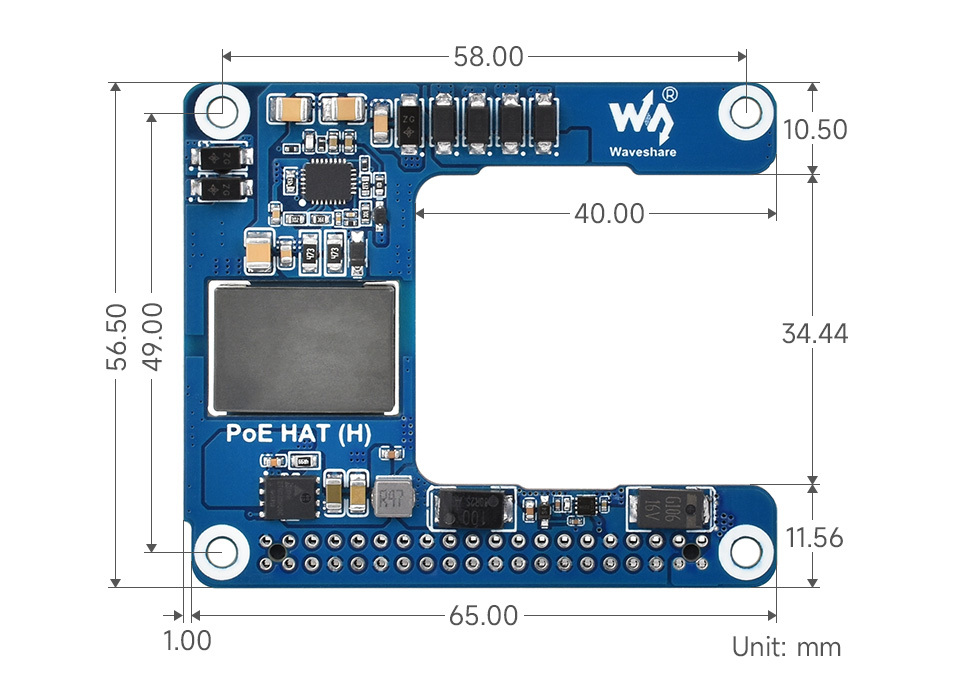

Outline Dimensions
