PiKVM V4 Plus - The Ultimate Open-source, Raspberry Pi based KVM Over IP for Seamless Remote Access
The next generation of Raspberry Pi based KVM over IP. Manage your servers or PC remotely! PiKVM is a feature-rich, production grade, open-source, Raspberry Pi based KVM over IP device.
PiKVM V4 Plus is the most feature-rich edition! Designed to be the most advanced and versatile PiKVM, it will assist you in the most unique and complex scenarios of tech support or remote system access/management.
NOTE - USB functionality such as KVM switching is only supported on the PiKVM V4 Plus. Unsure which PiKVM V4 model to choose? See our comparison chart
Please note that USB-C displays are not supported.
Features
- Turnkey solution equipped with all you need out of the box; a power supply, USB & Ethernet cables, and even PCI brackets.
- CE Certification - Industrial-grade level product thanks to the Raspberry Pi CM4.
- 1920x1080@60Hz & 1920x1200@60Hz resolution support for increased UEFI/BIOS compatibility & two extra HDMI output.
- Improved connectivity with three connectivity channels: WiFi (with optional external antenna, Ethernet, and Cellular.
- Extra storage via internal USB 3.0: An internal USB 3 slot for a flash drive.
- Upgraded powering options: Equipped with a classic 5.5x2.1mm DC barrel connector; compatible with a wide range of power supplies (8V to 24V).

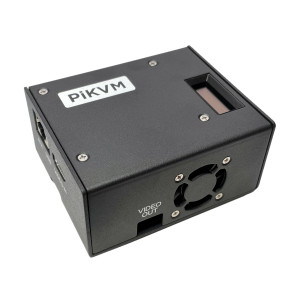

- New sleek steel case with a silent customized cooling system.
- More physical security features: MicroSD locker, Kensington security slot, and two locator LEDs.
Specifications
| Raspberry Pi Compute Module 4 | CM4102000 with 2GB of RAM, WiFi, and Bluetooth |
| Connection type | USB-C |
| Power type | DC 12V, 2A |
| Power failure option | Internal supercapacitor for the real time clock support |
| HDMI female | HDMI source input |
| USB-C female | For the keyboard, mouse, mass storage, and other external device emulation) |
| USB-C female | Serial console management port |
| Micro SD card slot | For the OS storage |
| ATX RJ-45 | Special port for power control or AUX |
| WiFi | Optional WiFi b/g/n support with internal/external antenna |
| LED indicators | power, activity, console power, search led, HDMI source engaged |
| OLED display | OLED 128x32 0.91” white |
| Supported resolutions | up to 1920x1200@60Hz |
| Video compression methods | MJPEG, H.264 |
| Audio capture mode | HDMI audio capture support |
| Peak power consumption | Up to 24W (2A/12V) |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 60°C |
| Size | 120 x 68 x 44mm |
| Weight | 0.35 kg |
Connectivity Diagram
|
|
Content
- PiKVM V4 Plus device
- Micro SD card with pre-imaged PiKVM software
- ATX control board
- ATX connection cables
- ATX installation brackets
- 1 x Ethernet cable
- 1 x ATX cable
- 1 x USB C to USB A cable
- 12V 2A Power Supply (international adapters)
