Ethernet / USB HUB HAT (B) for Raspberry Pi Series, 1x RJ45, 3x USB 2.0

Waveshare 20416 - Ethernet / USB HUB HAT (B) For Raspberry Pi Series, 1x RJ45 Ethernet Port, 3x USB 2.0 Ports - ETH/USB HUB HAT (B)

Features

The ETH/USB HUB HAT (B) is an Ethernet and USB HUB designed for Raspberry Pi, providing 1x RJ45 Ethernet port and 3x USB 2.0 ports. It's pogo pin design is specialized for Zero series, while the onboard normal USB connector can be used to connect with other Raspberry Pi boards through a USB cable.

• 3x extended USB ports, compatible with USB 2.0 / 1.1
• Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation
• Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero 2W/Zero W/Zero WH
• USB HUB connector, for connecting with Raspberry Pi 4B/3B+/3A+/2B through USB cable

Compatible With Raspberry Pi Series

• Specialized pogo pin for Zero Series, plug-and-play, without preventing other HATs.
• Normal USB HUB connector for other Raspberry Pi Boards Or PC

Extended Ports

• 1x RJ45 Ethernet Port, 10/100M Auto-Negotiation
• 3x USB 2.0 Ports, Compatible With USB 2.0 / 1.1

Includes

1. ETH/USB HUB HAT (B) x1
2. Screws pack x1

Weight: 0.026 kg

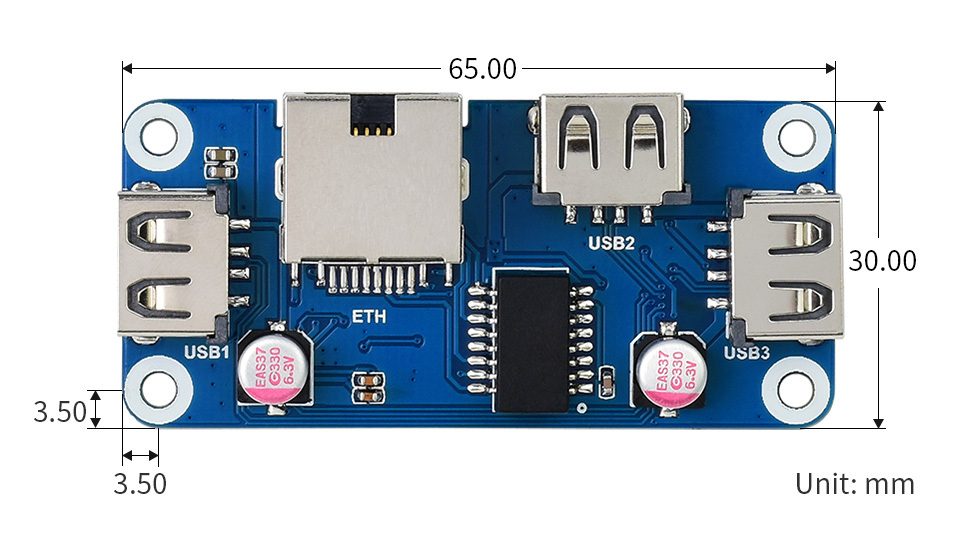

Outline Dimensions

Resources

• Wiki: ETH/USB_HUB_HAT_(B)
