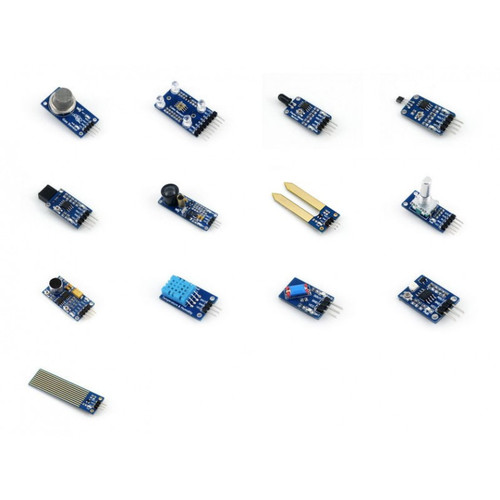

Waveshare 9467 - Ten Different Sensors in One Pack
Overview
| SENSOR | DESCRIPTION | APPLICATION |
|---|---|---|
| MQ-5 Gas Sensor | sensitive for LPG, natural gas, coal gas | gas leakage detector |
| Color Sensor | detects static color | sorting by color, color matching |
| Flame Sensor | sensitive to flame spectrum | fire detection, fire fighting robot, fire alarm |
| Hall Sensor | 49E hall sensor | motor speed measurement, object position detection |
| Infrared Reflective Sensor | reflective infrared transceiver | robot path tracking, obstacle-avoiding car, pipeline counter |
| Laser Sensor | laser sensor | obstacle detection, pipeline counter, smart robot |
| Moisture Sensor | fork-like soil moisture sensor | auto watering system, flowerpot soil moisture detection |
| Rotation Sensor | detects clockwise/anti-clockwise rotations | positioning in Industrial Controls |
| Sound Sensor | onboard audio power amplifier LM386 | ambient sound detection, sound level detection |
| Temperature-Humidity Sensor | DHT11 temperature and humidity sensor | ambient temperature and humidity detection |
| Tilt Sensor | detects shake signal | shake detection, guard alarm, smart car |
| UV Sensor | ultraviolet sensor | ultraviolet tester, outdoor ultraviolet detector, germicidal lamp |
| Liquid Level Sensor | detects liquid level | water level alarm |
Photos
