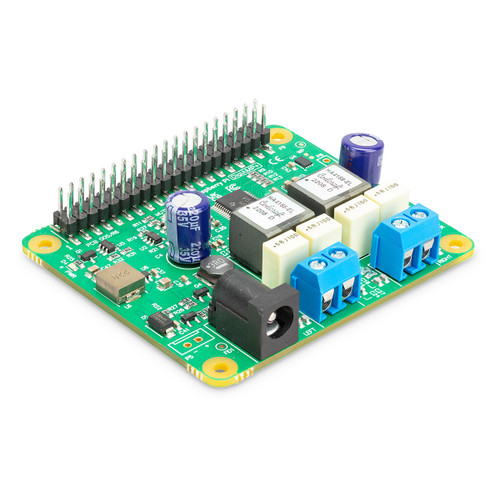

Raspberry Pi DigiAMP+, Green PCB - SC2076 - Also known as IQaudio DigiAMP+
Raspberry Pi DigiAMP+ is a high-performance audio HAT. With its on-board Texas Instruments TAS5756M stereo amplifier, it delivers a direct connection to passive stereo speakers at up to 35 Watts per channel with variable output, and is ideal for use in Raspberry Pi-based hi-fi systems. Powered by an external 12–24V DC power supply, it connects directly to Raspberry Pi’s GPIO header, providing power to your Raspberry Pi itself. Previously known as IQaudio DigiAMP+.
The Raspberry Pi DigiAMP+ is compatible with any Raspberry Pi computer that has a 40-pin GPIO header.
Raspberry Pi Audio HATs Comparison Table
| Line out | Balanced out | Stereo speakers | Mono speaker | Headphones | Aux in | Aux out | Ext mic | Built-in mic | |
|---|---|---|---|---|---|---|---|---|---|
| DAC Pro | ✓ | ✓ | ✓ | ||||||
| DAC+ | ✓ | ✓ | |||||||
| DigiAmp+ | ✓ | ||||||||
| Codec Zero | ✓ | ✓ | ✓ | ✓ | ✓ |
Specifications
-
Form factor: 58 mm × 65 mm
-
Performance: Full HD 24-bit / 192 kHz Texas Instruments TAS5756M digital audio codec (DAC)
-
Input power:
-
12–24 V DC external supply via panel-mounted 5.5 × 2.5 mm barrel connector (to purchase separately)
-
Do not apply power to the Raspberry Pi’s own power input when using DigiAMP+
-
Provides 5.1 V @ 2.5 A power from DigiAMP+ to the connected Raspberry Pi
-
-
Features:
-
Power LED
-
Alternative power input for hard-wired installs via P5
-
40-pin pass-through GPIO header
-
HAT EEPROM (write-enabled)
-
Supports 2 × 35 W passive stereo speakers with variable output via panel-mounted screw terminals
-
-
Operating temperature: 0 °C – 50 °C
