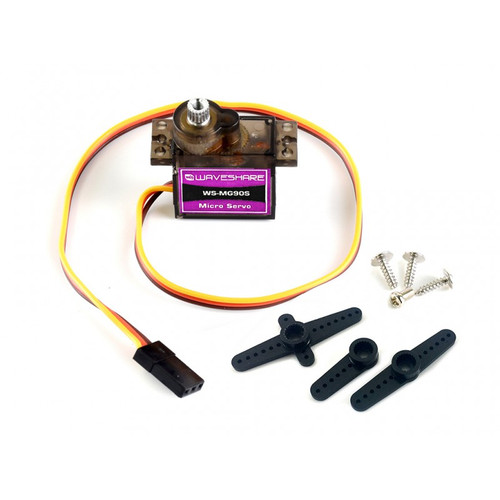

Waveshare 15024 - MG90S Micro Servo, Metal Gear - MG90S Servo
The Waveshare MG90S 9g Micro Servo Motor delivers reliable torque in a compact design. Built with durable metal gears, it ensures longer life and stable movement compared to plastic gear servos. This analog servo is ideal for robotics, Arduino projects, RC helicopters, planes, and DIY mechanisms. It works with standard PWM signals for easy microcontroller integration.
Specifications
- Product: MG90S Servo
- Torque: 2.0kg/cm(4.8V), 2.8kg/cm(6V)
- Speed: 0.11s/60°(4.8V), 0.09s/60°(6V)
- Rotate angle: 180°
- Operating voltage: 4.8 ~ 6V
- Gear: metal
- Dead band: 5us
- Weight: 12.2g
- Dimension: 22.8mm × 12.2mm × 28.5mm
