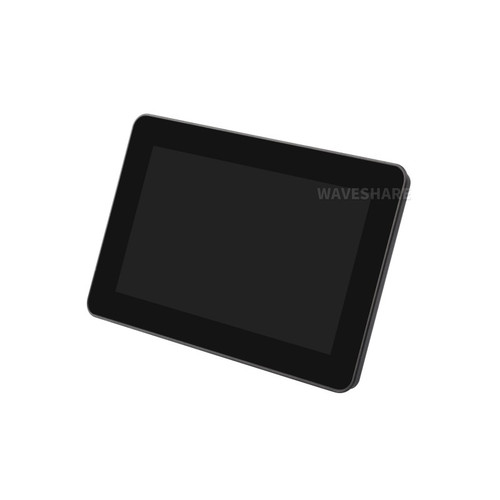

Industrial HMI All-in-one Touch Display For Raspberry Pi, 7inch, Aluminum Case
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 2198 |
| Condition: | New |
| Compatibility: | Pi 5 |
| Compatibility: | Pi 4 |
Waveshare 31549 - 7inch 720x1280 Industrial HMI Touch Display, Compatible with Raspberry Pi 4 and Pi 5, 10-point Touch, Aluminum Alloy Case - RPI-HMI-7A-ACCE (US)
This All-in-One HMI with a 7" IPS industrial touch display is designed for Raspberry Pi 5 and Pi 4. The 10-point capacitive touch screen is housed in an aluminum alloy enclosure that is built for enhanced passive heat dissipation.
A Raspberry Pi board and a power supply need to be purchased separately.
|
With Raspberry Pi 5 | With Raspberry Pi 4 |
|---|---|
 |
 |
Specifications
- Size: 7 inch
- Resolution: 720 × 1280
- Display Panel: IPS
- Viewing Angle: 170°
- Touch Type: Capacitive
- Touch Points: 10-Point
- Touch Panel: Toughened Glass
- Touch Panel Tech: Optical Bonding
- Panel Coating: Anti-Fingerprint
- Display Interface: Dual Standard HDMI 4K Output
- Power Port: Type-C/Screw Terminal
- Brightness: 450cd/m²
- Enclosure: Aluminum Alloy
Interface Introduction
- 5V Type-C power port
- Standard HDMI Interface x 2
- USB2.0 port x 2
- USB3.0 port x 2
- Gigabit Ethernet connector
- TF card slot
- Power button
- Power indicator
- 5V Power supply screw terminal (3.81mm pitch)
- Debugging serial port
Outline Dimensions
Package Content
- 7inch touch display × 1
- Mounting buckle (4PCS) × 1
- Screws pack × 1
- 5W thermal pad × 1
- Pi5-HMI Accessories Pack:
- PI5 side panel × 1
- Aluminum alloy heatsink × 1
- Silicon button × 1
- Pi4-HMI Accessories Pack:
- PI4 side panel × 1
- Copper heatsink × 1
- Pi5-Display-Cable ~200mm × 1
- 22PIN FFC Cable (2PCS) ~200mm × 1
