IMX462 2MP IR-CUT Camera, 90° DFOV, Starlight Camera Sensor, Fixed-Focus, for Raspberry Pi
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 410-1 |
| Condition: | New |

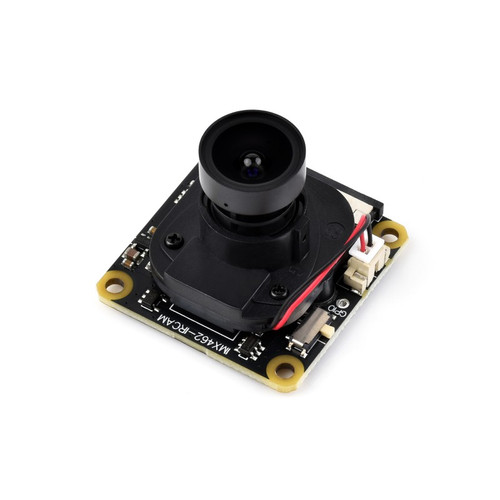

Waveshare 30450 - IMX462 2MP IR-CUT Camera, 90° DFOV, Starlight Camera Sensor, Fixed-Focus, Compatible With Raspberry Pi Boards - IMX462 IR-CUT Camera (A)
The Waveshare IMX462 IR-CUT Camera A is a high-sensitivity USB camera designed for low-light and infrared imaging. Featuring a Sony IMX462 sensor and built-in IR-CUT filter, it delivers exceptional night vision performance. Ideal for AI, machine vision, and surveillance applications.
Features
- Compatible with Raspberry Pi series boards
- Direct Connect To Raspberry Pi Different Variants Including 5 / 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+
- Supports Connecting To Zero / Zero 2 W Series
- 2MP | IR-CUT | 90° DFOV
- Capable of capturing clear images even in low light conditions
- Onboard switch and GPIO pad for switching or GPIO software control of IR-CUT function
- Correct color deviation of infrared camera during the daytime, better imaging effect
- Forks with IR fill light for night vision imaging
- The IR fill light needs to be purchased separately. It is recommended to use an 850nm fill light
Specifications
Sensor
|
IMX462
|
CMOS size
|
1/2.8 inch
|
|---|---|---|---|
PIXELS
|
2MP (1920 × 1080)
|
APERTURE
|
F2
|
FOCAL LENGTH
|
3.95mm
|
Diagonal FIELD OF VIEW
|
90°
|
CAMERA TYPE
|
Color
|
FOCUSING
|
Fixed focus
|
DISTORTION
|
< 5%
|
SHUTTER
|
Rolling Shutter
|
Package Content
- IMX462 IR-CUT Camera (A) x1
Weight: 0.012 kg

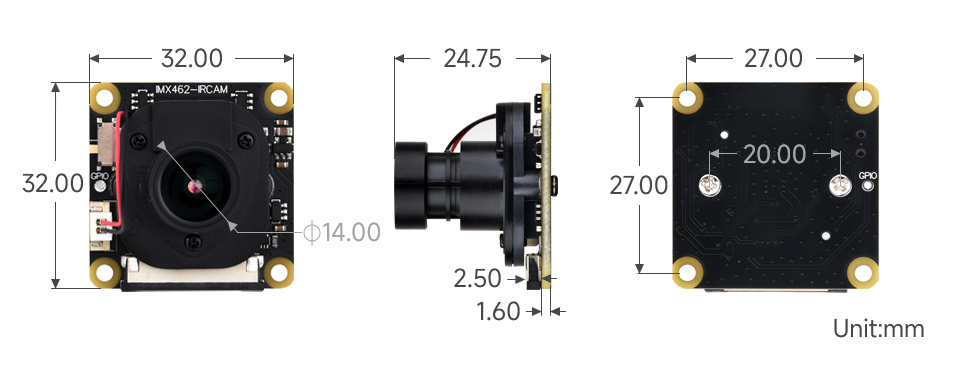

Outline Dimensions
