2030 Cavity Speaker, 8Ω 2W, High-quality Sound, Compact Size, 4PIN PH1.25 Connector
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 1996-1 |
| Condition: | New |
Waveshare 27745 - 2030 Cavity Speaker, 8Ω 2W, High-Quality Sound, Compact Size, 4PIN PH1.25 Connector - 8Ω 2W Speaker
The Waveshare 2030 8Ω 2W Cavity Speaker delivers clear audio in a compact form. It features a built-in cavity design for improved sound quality. The 4-pin PH1.25 connector with 150 mm cable is designed for direct use with Waveshare displays and modules.
Compatibility
Waveshare displays with a 4PIN PH1.25 connector, including but not limited to:
- 8inch Capacitive Touch Display - 8DP-CAPLCD
- 8inch Capacitive Touch Display - 8inch 768x1024 LCD
- 9.3inch Capacitive Touch Display - 9.3inch 1600x600 LCD
- 9.7inch Capacitive Touch Display - 9.7inch 768x1024 LCD
- 10.1inch Capacitive Touch Display - 10.1DP-CAPLCD
- 10.4inch QLED Quantum Dot Display - 10.4HP-CAPQLED
ℹ️ Note on connector:
This speaker uses a 4-pin PH1.25 connector with a 150 mm cable. It’s a compact JST-style plug commonly found on Waveshare displays and modules. For general use, you may need an adapter or to re-terminate the cable.
This speaker uses a 4-pin PH1.25 connector with a 150 mm cable. It’s a compact JST-style plug commonly found on Waveshare displays and modules. For general use, you may need an adapter or to re-terminate the cable.
Specifications
| Frequency band | 0 ~ 20KHz |
|---|---|
| Impedance | 8 ± 15%Ω |
| Power | 2W |
| Operating temperature | -20 ~ 55℃ |
| Wire Spec | 4PIN PH1.25 connector, approx. 150mm cable length |
| Size | 20 × 30 × 5.5mm |

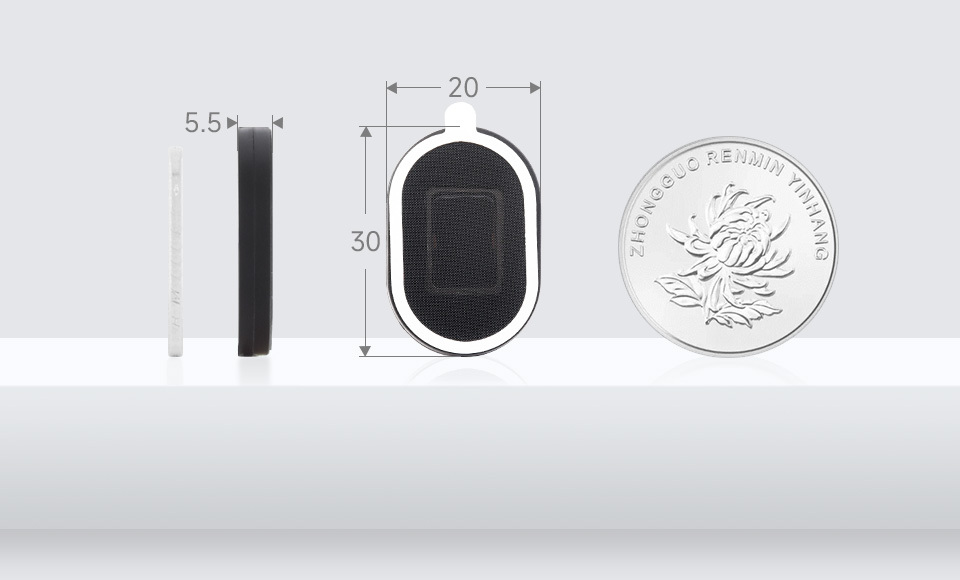

Compact Size, High-Quality Sound

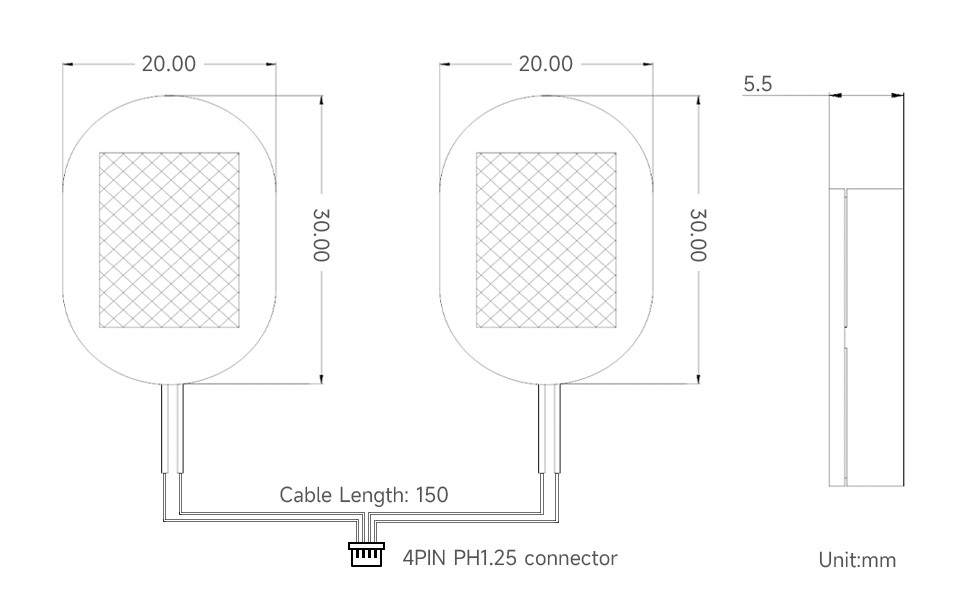

Outline Dimensions
